LD Systems DP 1600 2 x 800 Watt Power Amplifier
Comes from local auction , has been tested via music band, confirmed good working condition
- 2 x 800 Watt channels
- Rack mountable in a 19” rack case
- Clip limiter and a variety of electrical and thermal protection circuits
- Combo XLR and Jack inputs and Speakon outputs
- Ground lift switch to eliminate hum
- Stereo or bridged modes
Specifications
- Product Type: Power Amplifiers
- Type PA: Power Amplifiers
- Rated Output Power (1kHz at 2 Ohms): 2 x 800 W
- Rated Output Power (1kHz at 4 Ohms): 2 x 650 W
- Rated Output Power (1kHz at 8 Ohms): 2 x 450 W
- Rated Output Power (1kHz at 4 Ohms, Bridged): 1600 W
- Rated Output Power (1kHz at 8 Ohms, Bridged): 1300 W
- Output Circuitry: Class H
- Frequency Response: 20 – 20000 Hz
- THD: Signal-to-Noise Ratio: 106 dB
- Damping Factor: > 400
- Crosstalk: >80 dB
- Gain: 39 dB
- Input Sensitivity: 0.775 V
- Protection Circuits: Clip Limiter , DC Protection , Short Circuit , Thermal Overload
- Controls: 2 x Volume , Bridge/Stereo Mode Selector , Ground Lift , Mains Switch (On/Off)
- Indicators: Level , Limit , Power , Protect (Protection Circuit Engaged) , Signal
- Loudspeaker Outputs: 2
- Speaker Output Connections: Speakon Compatible , Terminal Posts
- Cooling: Highly Efficient, Automatic
- Operating Voltage: Transformer
- Operating Voltage: 230 V AC / 50-60 Hz
- Weight: 15.9 kg

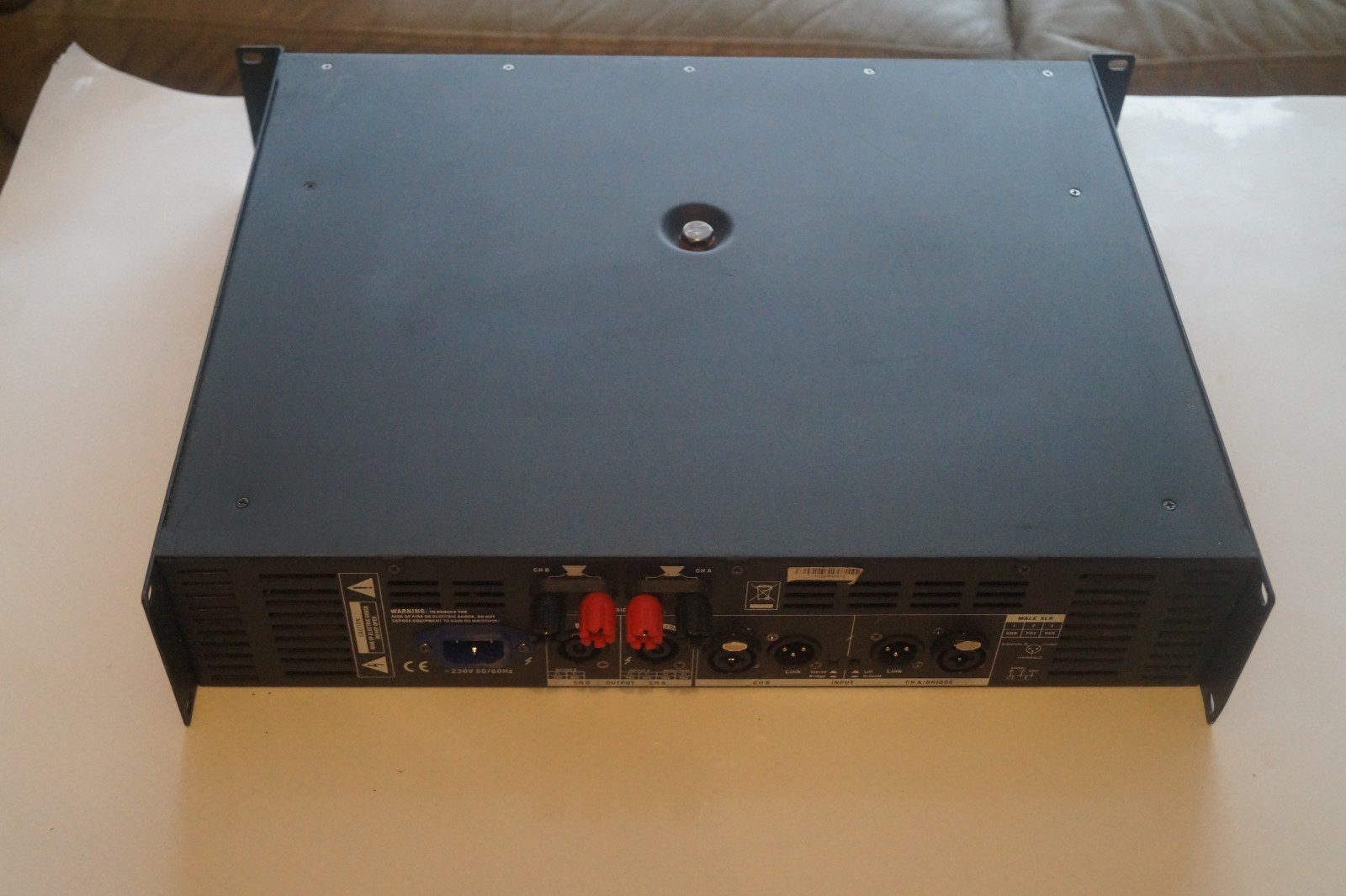

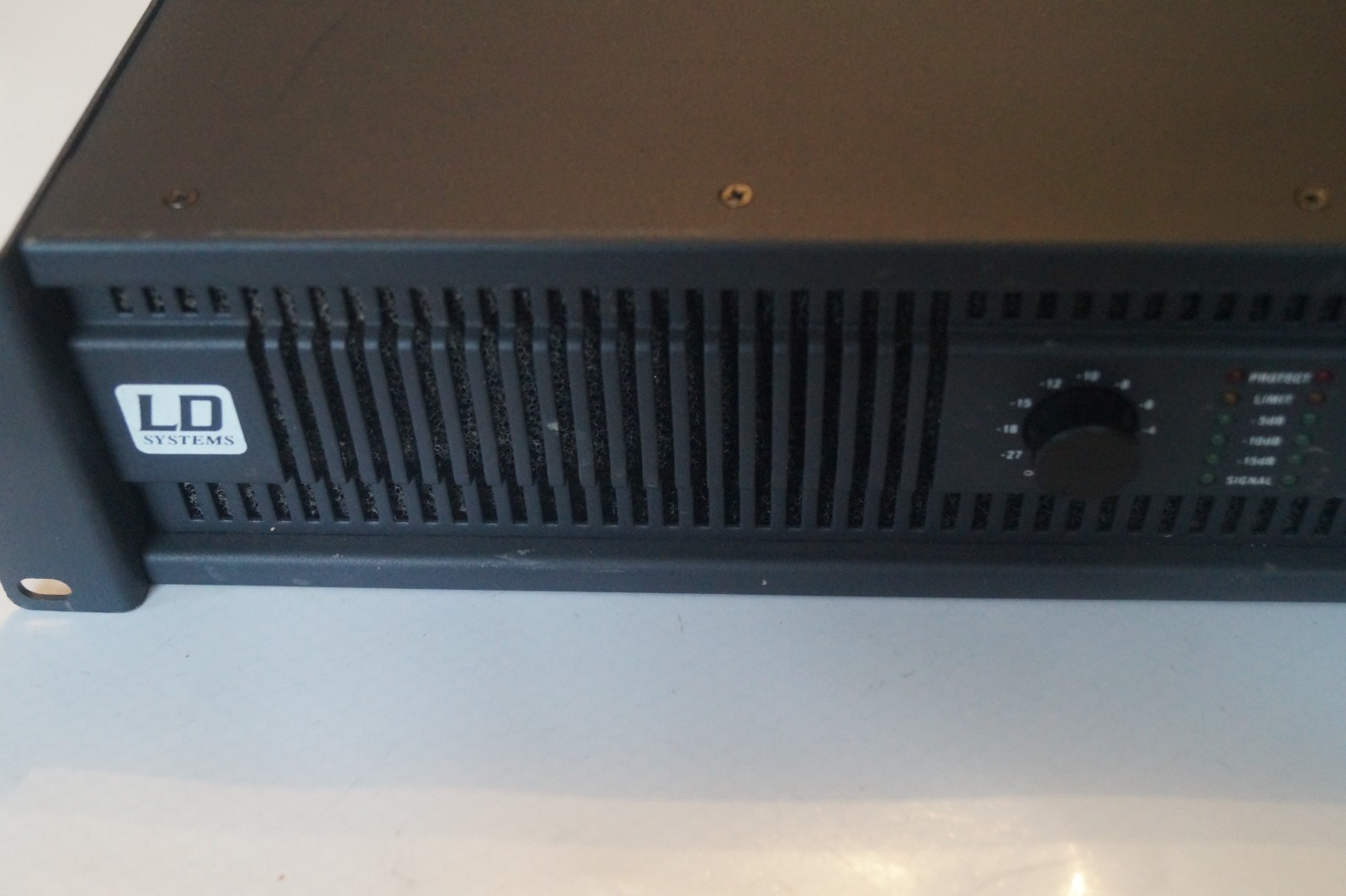

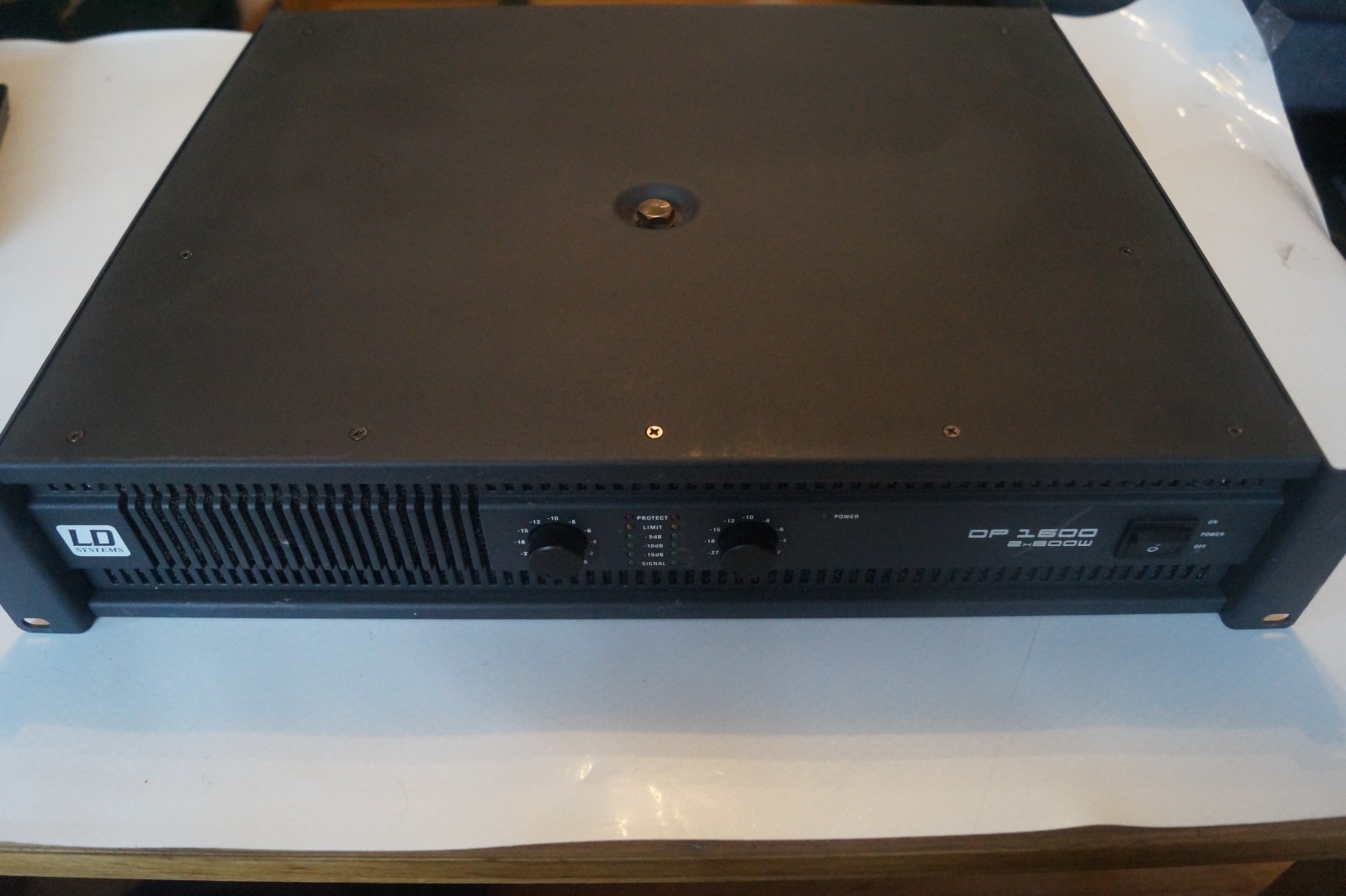

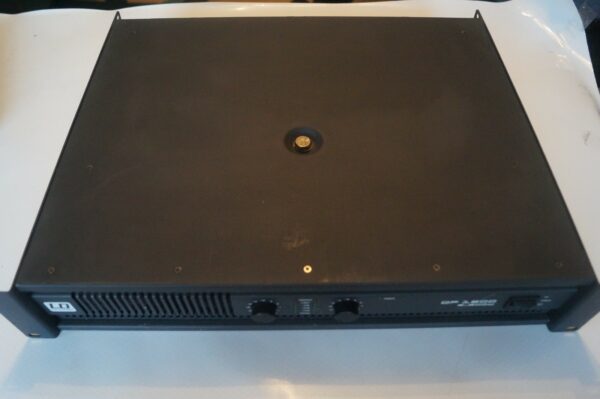

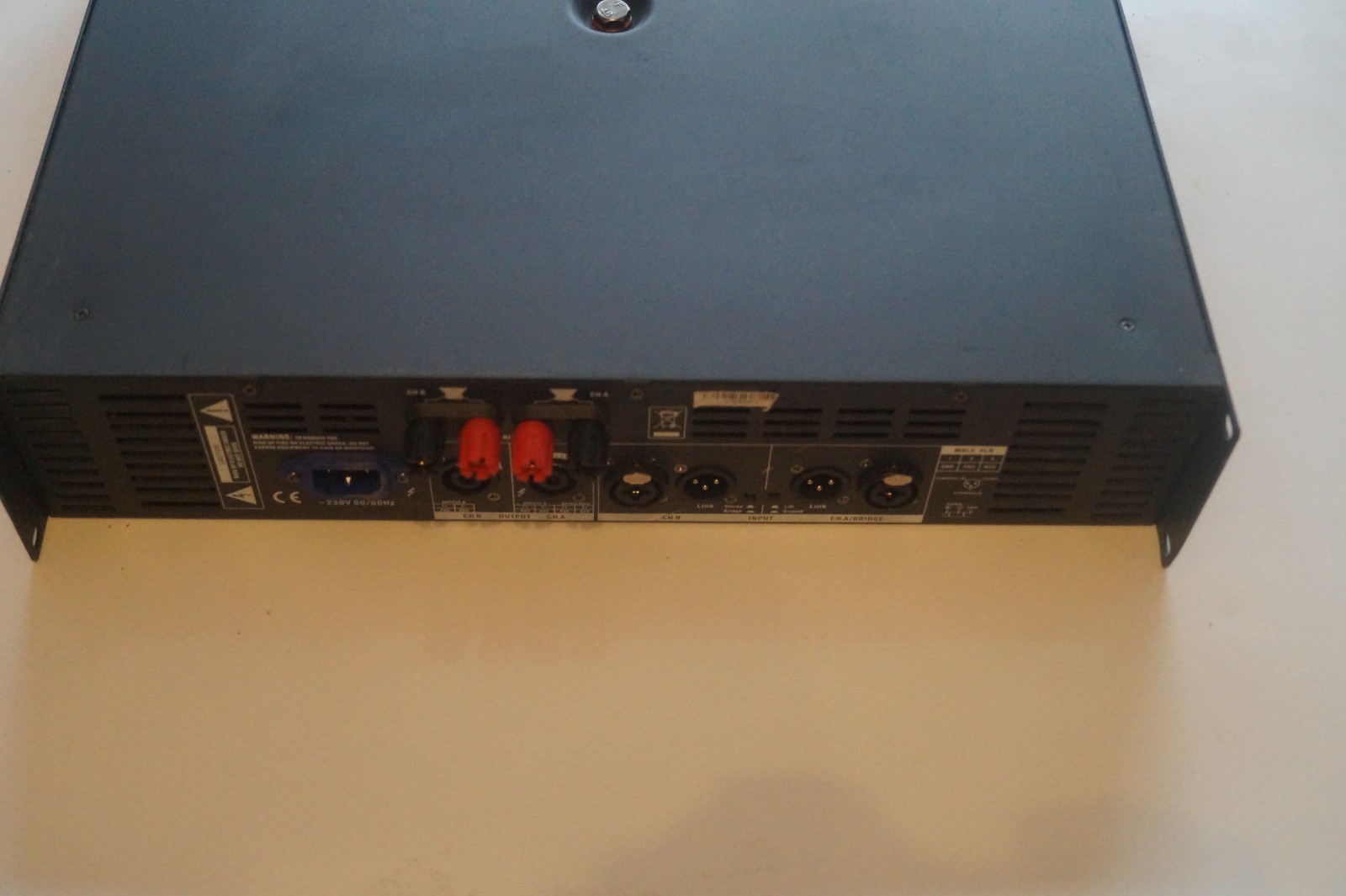

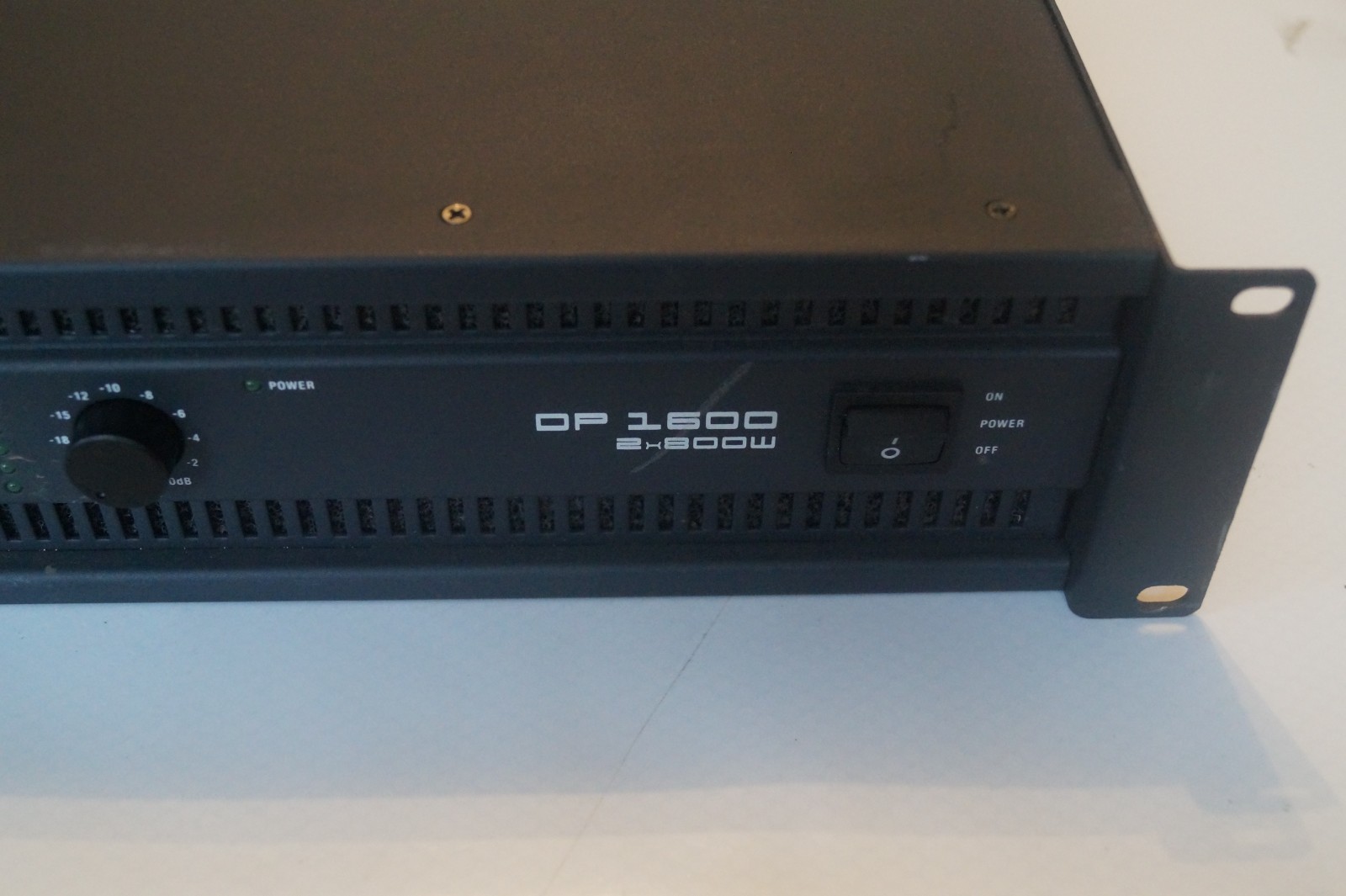

USED / TESTED / FULLY FUNCTIONAL WITH SOME SIGNS OF USAGE .. PLEASE CHECK PICTURES BEFORE PURCHASE
THE SAME / NEXT DAY DISPATCH / RECORDED DELIVERY
